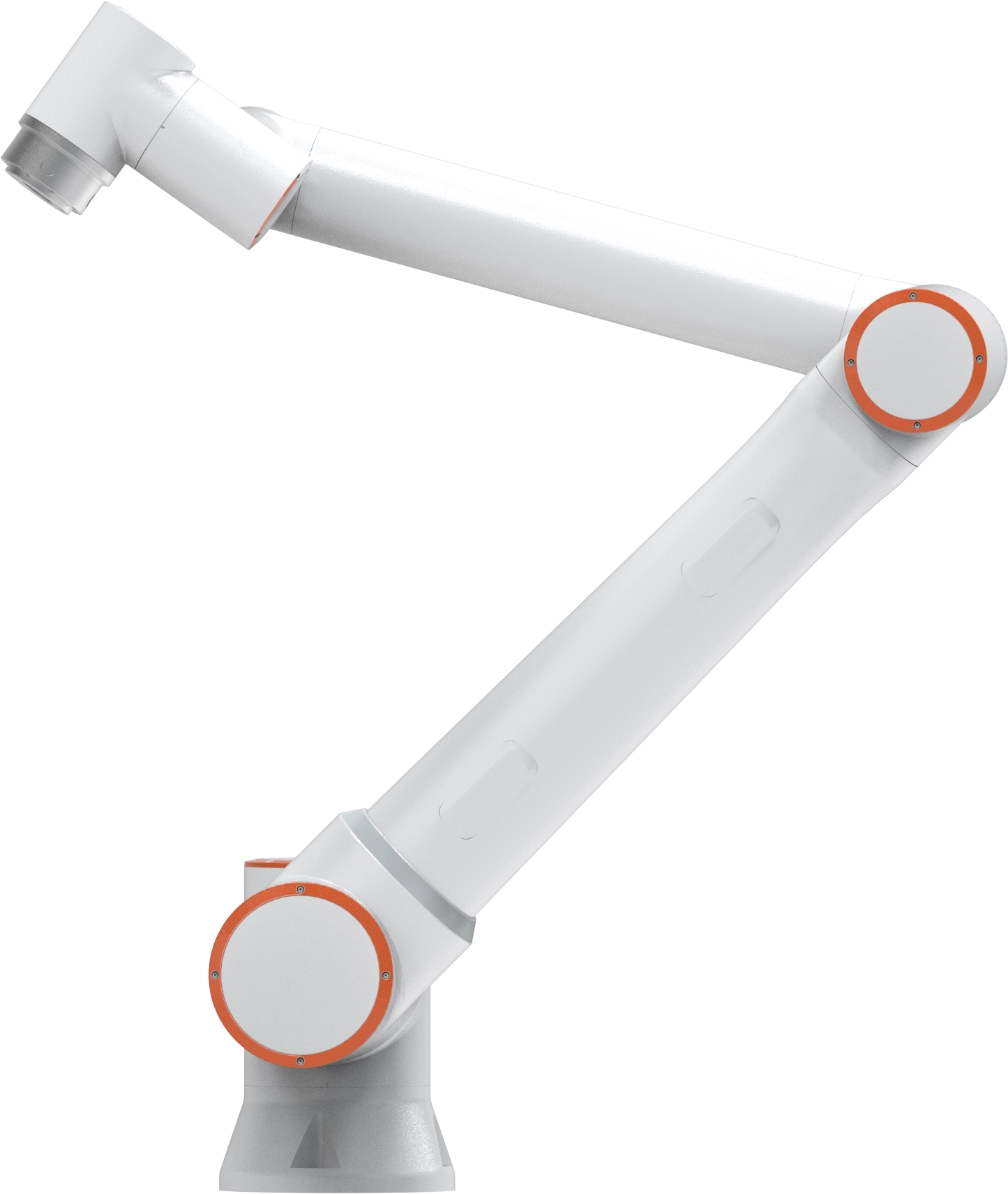

FAIRINO FR10
List price $11,599
A 10 kg arm with 1,400 mm reach for a larger working envelope.
- Payload
- 10 kg
- Reach
- 1,400 mm
- Repeatability
- ±0.05 mm
- Axes
- 6

FR10 specifications
| Specification | Value |
|---|---|
| Payload | 10 kg |
| Reach | 1,400 mm |
| Repeatability | ±0.05 mm |
| Axes | 6 |
| TCP speed | 1.5 m/s |
| Arm weight | 40 kg |
| Protection rating | IP54 (IP65 optional) |
FR10 or FR16?
| Specification | FR10 This page | FR16 |
|---|---|---|
| Type | Standard series | Standard series |
| Payload | 10 kg | 16 kg |
| Reach | 1,400 mm | 1,034 mm |
| Repeatability | ±0.05 mm | ±0.03 mm |
| TCP speed | 1.5 m/s | 1 m/s |
| Arm weight | 40 kg | 40 kg |
| List price | $11,599 | $11,599 |
- Choose the FR16 instead if you need more payload: 16 vs 10 kg payload, 1,034 vs 1,400 mm reach, tighter repeatability (±0.03 vs ±0.05 mm), slower TCP speed (1 vs 1.5 m/s), same list price.
When to consider the FR10
Shortlist the FR10 when a larger fixture or wider station spacing calls for more reach than the FR5. If load rather than distance is the constraint, compare the FR16: it carries a higher listed payload but has a shorter nominal reach. Neither figure alone establishes that a robot can reach inside your machine while holding the proposed tool.
Plan a potential application: Cobot machine tending · Cobot pick and place. Selection depends on the complete tool load, motion path, process, and cell assessment.
Check these details before choosing
- Provide a layout showing the robot base, machine opening, incoming parts, and finished-part position.
- Include gripper offset and the combined load when checking the manufacturer’s load information.
- Test the complete load/unload sequence, including machine waiting time and recovery after an interrupted cycle.
Compare nearby FAIRINO options
| Model | Payload basis | Reach | Repeatability |
|---|---|---|---|
| FAIRINO FR10 | 10 kg | 1,400 mm | ±0.05 mm |
| FAIRINO FR5 | 5 kg | 922 mm | ±0.02 mm |
| FAIRINO FR16 | 16 kg | 1,034 mm | ±0.03 mm |
What to include in your FR10 quote
Request an itemized configuration and a complete project scope. Ask which items are supplied, optional, or your responsibility:
- Robot designation, controller, programming interface, cables, and software options.
- End effector, adapters, fixtures, part presentation, and any vision or tool-changing equipment.
- Mounting, machine interfaces, safeguarding, integration, and commissioning.
- Representative acceptance tests, operator training, delivery terms, warranty, and support responsibilities.
Share part dimensions, total carried load, a layout, and your cycle target. The response can then address a defined application rather than an arm-only price.
Discuss your applicationTechnical documents for FR10
Use the manufacturer documents to review the mounting, load arrangement, and control package. Ask for documentation matching the exact robot and software version in your quote.
