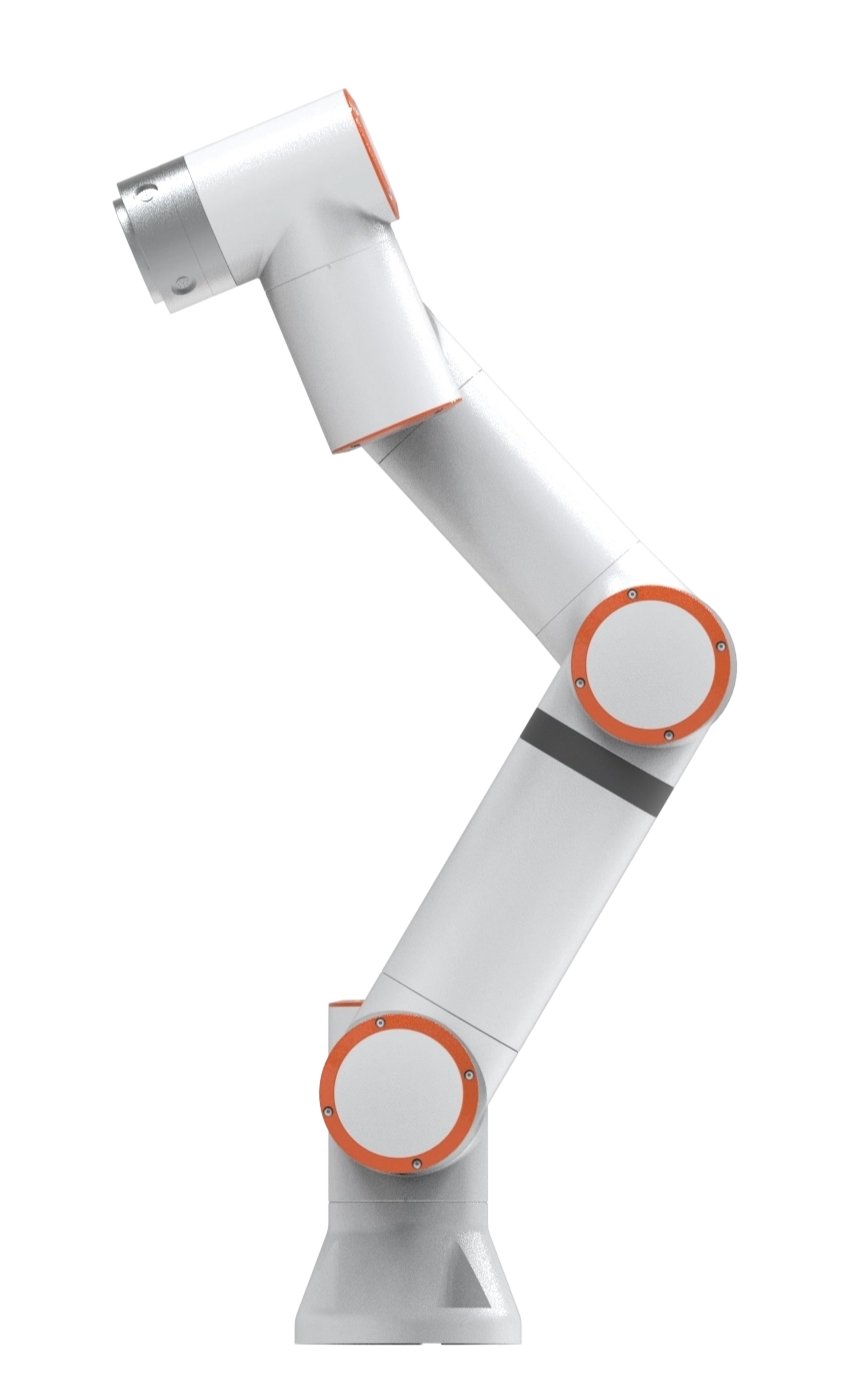

FAIRINO FR3 collaborative robot

FR3 specifications

FR3 specifications
SpecificationValue
Payload3 kg
Reach622 mm
Repeatability±0.02 mm
Axes6
TCP speed1 m/s
Arm weight15 kg
Protection ratingIP54 (IP65 optional)

Which FR3 variant?

FR3 compared with FR3-WMS and FR3-WML
SpecificationFR3 This pageFR3-WMSFR3-WML
TypeStandard seriesWelding variantWelding variant
Payload3 kg3 kg3 kg
Reach622 mm622 mm922 mm
Repeatability±0.02 mm±0.02 mm±0.05 mm
TCP speed1 m/s1 m/s1 m/s
Arm weight15 kg10.5 kg11.25 kg
List price$7,999$9,099$9,499
  • Choose the FR3-WMS instead if you need FAIRINO’s welding configuration: same 3 kg payload, same 622 mm reach, same ±0.02 mm repeatability, lighter arm (10.5 kg vs 15 kg), list price $1,100 higher.
  • Choose the FR3-WML instead if you need FAIRINO’s welding configuration with more reach: same 3 kg payload, 922 vs 622 mm reach, looser repeatability (±0.05 vs ±0.02 mm), lighter arm (11.25 kg vs 15 kg), list price $1,500 higher.

When to consider the FR3

Consider the FR3 for a compact handling station where the part, gripper, and adapter fit the complete carried-load allowance. A short nominal reach can suit a tightly arranged fixture, but the robot still needs room for approach, withdrawal, and tool rotation. Compare the FR5 when station spacing is the limiting requirement.

Plan a potential application: Cobot pick and place · Cobot machine tending. Selection depends on the complete tool load, motion path, process, and cell assessment.

Check these details before choosing

  • Weigh the smallest and largest part with the actual gripper, adapter, and attached services.
  • Plot the approach to every pocket or fixture, including the tool offset and a safe withdrawal path.

Compare nearby FAIRINO options

FR3 and alternative FAIRINO configurations
ModelPayload basisReachRepeat­ability
FAIRINO FR33 kg622 mm±0.02 mm
FAIRINO FR55 kg922 mm±0.02 mm

What to include in your FR3 quote

Request an itemized configuration and a complete project scope. Ask which items are supplied, optional, or your responsibility:

  • Robot designation, controller, programming interface, cables, and software options.
  • End effector, adapters, fixtures, part presentation, and any vision or tool-changing equipment.
  • Mounting, machine interfaces, safeguarding, integration, and commissioning.
  • Representative acceptance tests, operator training, delivery terms, warranty, and support responsibilities.

Share part dimensions, total carried load, a layout, and your cycle target. The response can then address a defined application rather than an arm-only price.

Discuss your application

Technical documents for FR3

Use the manufacturer documents to review the mounting, load arrangement, and control package. Ask for documentation matching the exact robot and software version in your quote.
